Standard/OEIn stock
$75.74
10 items in stock
Quality For FREE Shipping
KNH-100105• Rear• Parking Brake Shoe Kits
Add Vehicle to Confirm Fitment
Select your vehicle to see compatible products and accurate pricing
GeoBrakes stocks complete parking brake shoe kits confirmed to fit the Mazda Cx 9 drum-in-hat rear parking brake system, combining OEM-grade parking brake shoes matched to the Cx 9 drum diameter with the return springs, shoe strut, adjusting screw assembly, and retaining clips needed for a correct, fully functional parking brake service on your Mazda Cx 9. Replacing shoes without the hardware is the leading cause of parking brake failure after service on the Cx 9 in American conditions.
Standard/OE$75.74
10 items in stock
Select your vehicle to see compatible products and accurate pricing
A parking brake shoe kit for the Mazda Cx 9 restores complete parking brake function, not just the friction lining. The most common reason a freshly serviced Cx 9 parking brake fails to hold on a hill is not worn shoes: it is a seized adjuster that prevents the shoe-to-drum clearance from being correctly set after installation on your Mazda Cx 9. In the enclosed drum-in-hat cavity of the Cx 9, road salt and meltwater concentrate corrosion on the adjuster threads, the return springs, and the strut. A kit that includes every hardware component alongside the shoes is the only way to guarantee the Mazda Cx 9 parking brake performs correctly after service.

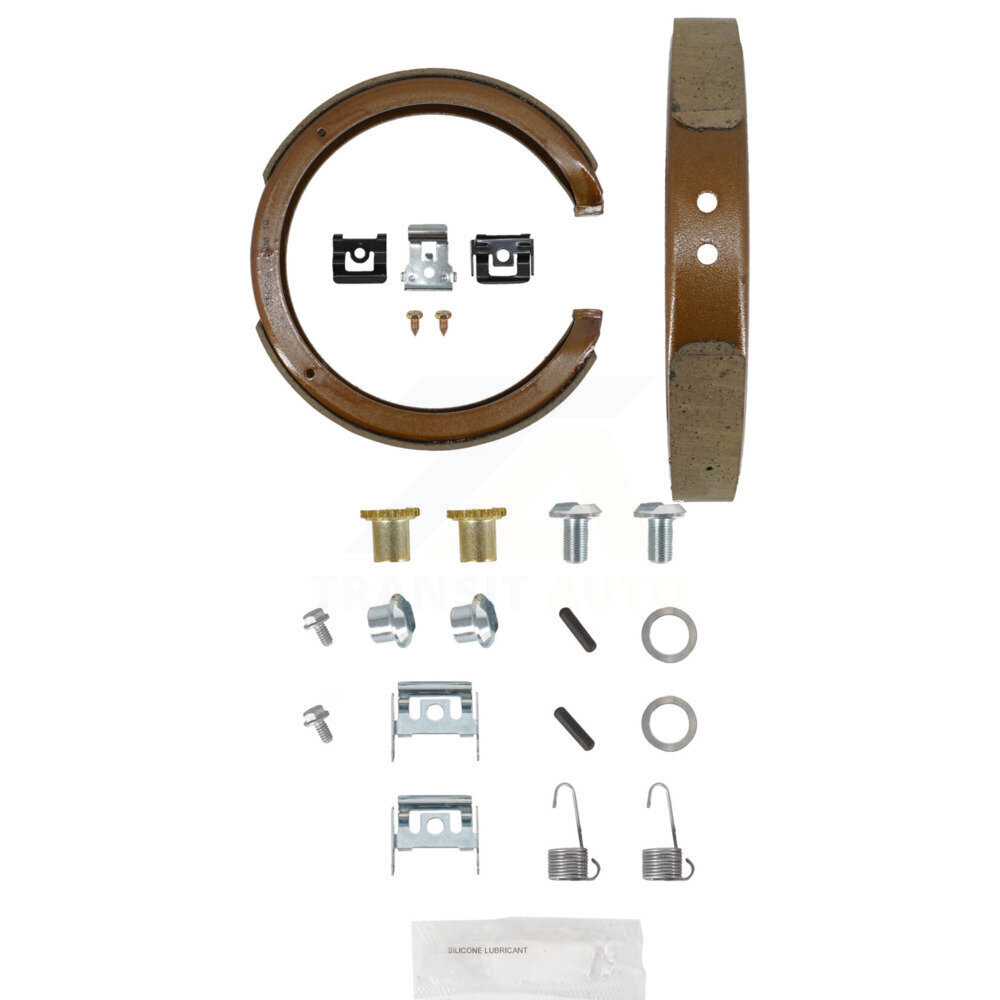

The kit for your Mazda Cx 9 includes parking brake shoes with OEM-grade friction lining at the correct arc length and lining width for the Cx 9 drum-in-hat diameter, return springs that retract both shoes cleanly after the Cx 9 parking brake is released, hold-down hardware with springs and pins that locate the shoes while permitting actuation on your Mazda Cx 9, the parking brake strut connecting both shoes through the Cx 9 mechanism, the adjusting screw assembly setting correct shoe-to-drum clearance for reliable holding force on your Mazda Cx 9, and retaining clips and washers securing the strut and adjuster in correct operating position on the Cx 9.
The parking brake shoe adjuster on the Mazda Cx 9 sets the gap between the shoes and the inner drum surface of the Cx 9 rotor hat. In American winters, the drum-in-hat cavity of the Cx 9 traps road salt and moisture. The adjuster threads on your Mazda Cx 9 corrode and seize, sometimes within a single winter season. A seized adjuster on the Cx 9 produces a parking brake that either drags against the drum when released or fails to hold the Mazda Cx 9 on a slope when engaged.
Parking brake shoe kits for the Mazda Cx 9 are among the most vehicle-specific brake components in the catalogue. The shoe arc length, lining width, spring rates, strut length, and adjuster thread specification for the Cx 9 are all determined by the specific drum-in-hat diameter of the Mazda Cx 9 rotor. Every kit in the GeoBrakes catalogue is assembled for the Mazda Cx 9 exact year and model, with zinc-plated or coated hardware components to resist the concentrated corrosion inside the Cx 9 drum-in-hat cavity.
How do I know if my Mazda Cx 9 uses parking brake shoes?
Mazda Cx 9 vehicles with four-wheel disc brakes often use a drum-in-hat parking brake requiring separate shoes. Some Cx 9 variants instead use a caliper-actuated parking brake. Use the GeoBrakes vehicle selector to confirm your Mazda Cx 9 parking brake type and find the correct kit.
My Mazda Cx 9 parking brake light stays on after I release it, do the shoes need replacing?
A warning light that stays on after full release on the Mazda Cx 9 can indicate worn shoes, a faulty sensor, low brake fluid, or a stretched cable on the Cx 9. If the Mazda Cx 9 fails to hold on a slope, a shoe kit replacement combined with cable and adjuster inspection is the recommended starting point for your Cx 9.
Can I adjust the parking brake on my Mazda Cx 9 after installing a shoe kit without replacing the cable?
Yes, if the Cx 9 cable is in good condition and within its adjustment range. After correct shoe installation and adjuster setting on the Mazda Cx 9, adjust the cable until the brake holds firmly within three to five clicks of Cx 9 lever travel.
