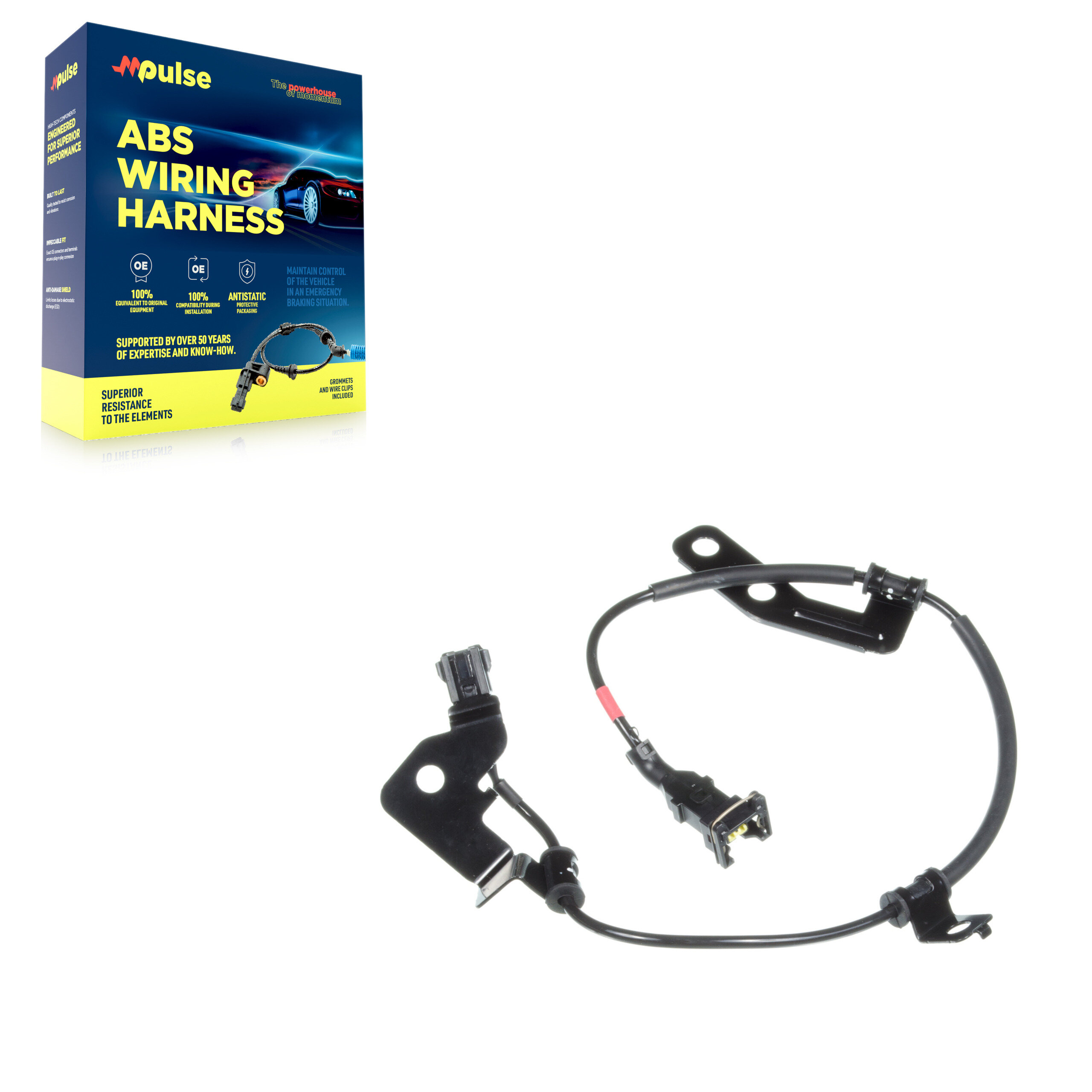

Hyundai Santa Fe Xl ABS Sensor Wiring Harness in US

The ABS wheel speed sensor wiring harness on the Hyundai Santa Fe Xl is the cable assembly that carries the wheel speed signal from the sensor at the hub to the ABS control module of your Santa Fe Xl. When road salt, physical impact, or conductor fatigue interrupts that signal on the Hyundai Santa Fe Xl, the ABS module disables the anti-lock braking system entirely. ABS harness damage is one of the most common causes of persistent ABS fault codes on American Santa Fe Xl vehicles.

Why ABS Harnesses Fail Frequently on Hyundai Santa Fe Xl Vehicles

Hyundai Santa Fe Xl ABS wiring harnesses sit directly exposed to road spray, salt, stones, ice, and the physical movement of the Santa Fe Xl suspension and steering. Road salt penetrates Santa Fe Xl connector terminals and creates resistance that appears as an erratic or missing signal. Hyundai Santa Fe Xl cable sheathing hardens with age and begins to crack, exposing conductors to moisture. Physical impact from road debris can sever a Santa Fe Xl harness entirely. Rodent damage to cables parked outdoors during winter is another common failure cause specific to American Hyundai Santa Fe Xl ownership that is rarely considered until diagnostics reveal it.

Signs the ABS Harness on Your Hyundai Santa Fe Xl Needs Replacing

• ABS warning light on your Hyundai Santa Fe Xl that persists after confirming the wheel speed sensor itself is good
• Fault codes pointing to a specific Santa Fe Xl wheel circuit as open or short
• Intermittent ABS activation or warning lights on the Hyundai Santa Fe Xl that change with road surface conditions
• Visible physical damage or bare copper visible on the Santa Fe Xl cable run near the wheel
• Corroded or discolored connector terminals on the Hyundai Santa Fe Xl visible during inspection

Why GeoBrakes for the Hyundai Santa Fe Xl ABS Sensor Wiring Harness

The most important specification for a Hyundai Santa Fe Xl ABS wiring harness is that it fits exactly. Correct length, routing, and connector at both ends for the Santa Fe Xl, without splicing or modification. Every harness in the GeoBrakes catalogue is manufactured to the correct specifications for the Hyundai Santa Fe Xl and wheel position. Plug-and-play installation means no soldering, no splicing, and no risk of introducing a new connection point that will corrode on your Santa Fe Xl.

Frequently Asked Questions - Hyundai Santa Fe Xl ABS Sensor Wiring Harness

Can I repair a damaged ABS harness on my Hyundai Santa Fe Xl instead of replacing it?

Minor conductor breaks on the Santa Fe Xl can sometimes be repaired by splicing, but this is not a reliable long-term solution in American conditions on the Hyundai Santa Fe Xl. A splice point on your Santa Fe Xl is a future corrosion site that will generate high resistance and cause intermittent ABS faults. Replacing the full Santa Fe Xl harness with a direct-fit OEM-grade unit eliminates that risk entirely.

Will a damaged ABS harness disable the entire ABS system on my Hyundai Santa Fe Xl?

Yes. If the Santa Fe Xl harness has an open circuit, the Hyundai Santa Fe Xl ABS module receives no signal from that wheel and disables the entire anti-lock system as a safety measure.

How do I identify which ABS harness to order for my Hyundai Santa Fe Xl?

Use the GeoBrakes vehicle selector, enter the Hyundai Santa Fe Xl year, make, and model, then select the wheel position matching the damaged harness on your Santa Fe Xl.
